TaiZhou ChuangYuan wire cut EDM low price on sale

FOB Reference Price:Get Latest Price
$1,000.00 - $8,000.00 / Sets | 1 Set/Sets TaiZhou ChuangYuan wire cut EDM low price on sale (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
BENYUE
Model Number:
DK77100
Voltage:
380V/50Hz
Power(W):
<2kw
Dimension(L*W*H):
2400*2200*2000mm
Certification:
ISO9001:2008
Product name:
TaiZhou ChuangYuan wire cut EDM low price on sale
Model:
DK77100
Working table size:
1820*1180mm
Travel of working table:
1000*1400mm
Maximum cutting thickness:
1000mm
Taper machining:
3-6°/80mm
Maximum load weight:
4000kg
Optimum surface roughness:
Ra<2.5um
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
6500kg
Warranty:
1 Year
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden container
Port
shanghai
Lead Time :
Shipped in 30 days after payment

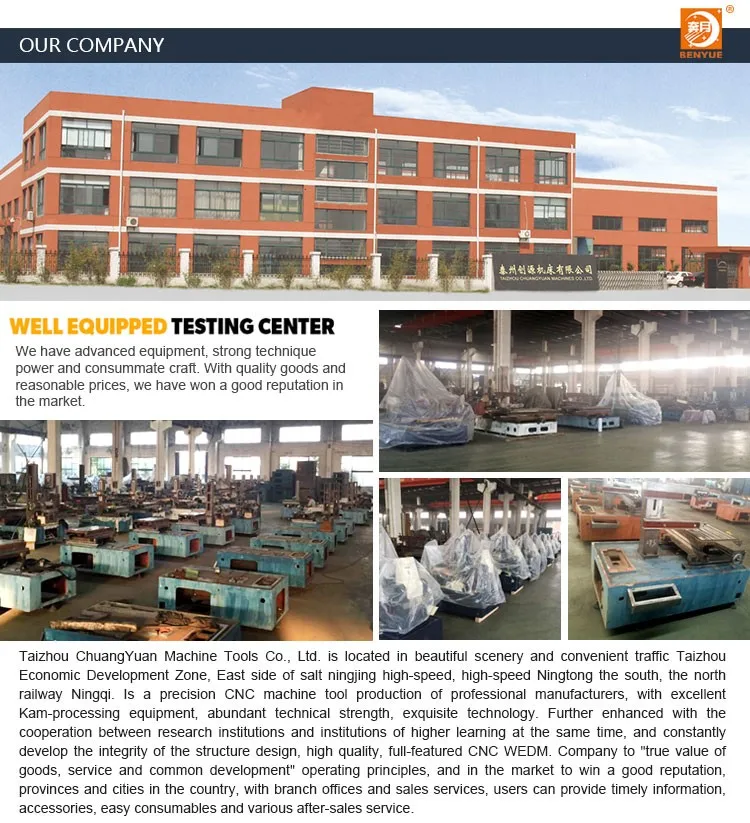

Company Description
Machine Tool Feature

     Max. feature of this serial product lies in the fact that it has no special requirements to the processed metal material properties. In principle , it can process all the conductive materials such as super-hard and hard alloy , quenching materials , stainless  steel ductile materials,various magnet steel fragile materials , uneasily-clamped thin wall spares etc. If the machine Tool gets the aid of the auxiliary extra-large specification of “Taper Cutting Device” and “Responsive Micro-Computer system” produced by this company, then it can gain the satisfactory results in processing all kinds of the special spares which  terrify other Machine Tools . Following the constant appearance of the high-tech products , it continuously prospers the national economy. We predict that the characteristics of this serial product will be further developed and utilized. It will find favor in the eyes of vast customers.


Operation

   The serial product applies “Electrical Discharge Machining” mechanism. It gets the auxiliary aid from electro-mechanically integrated product which combines Automated Control with Micro-Computers . The Machine Tool usually adopts “Molybdenum Wire” or “Hard Brass Wire” as the “Tool Electrode” .Under the “High Frequency Pulse Voltage Functions”, it utilizes the effect that it forms “Spark Discharge” after the liquid medium has been broken down. It instantaneously products great volumes of heat energy in the Spark Channel .It melts or even gasifies the metal in the surface of the Work-piece.With the joint action of the liquid medium , the metal has been rapidly eroded and removed. The work-piece which has been chuckde in the coordinates Work-Table has been processed intovarious required shapes according to the pre-formulated program under the Micro-Computer Control.


Main use

1.It processes various molds such  as rubber and plastic molds , punch die and so on .
2.it processes the special material of fragile materials ,stainless steel ductile materials,super-hard materials.
3.it processes the complex-shape spares  such as the tapered upper and lower specially-shaped spares and so forth.


Detailed Image
Model
 DK 77100
Working table size
1820*1180mm
Travel of working table
1000*1400mm
Maximum cutting thickness
1000mm
Taper machining
3-6°/80mm
Maximum load weight
 4000kg
Optimum surface roughness
Ra<2.5um

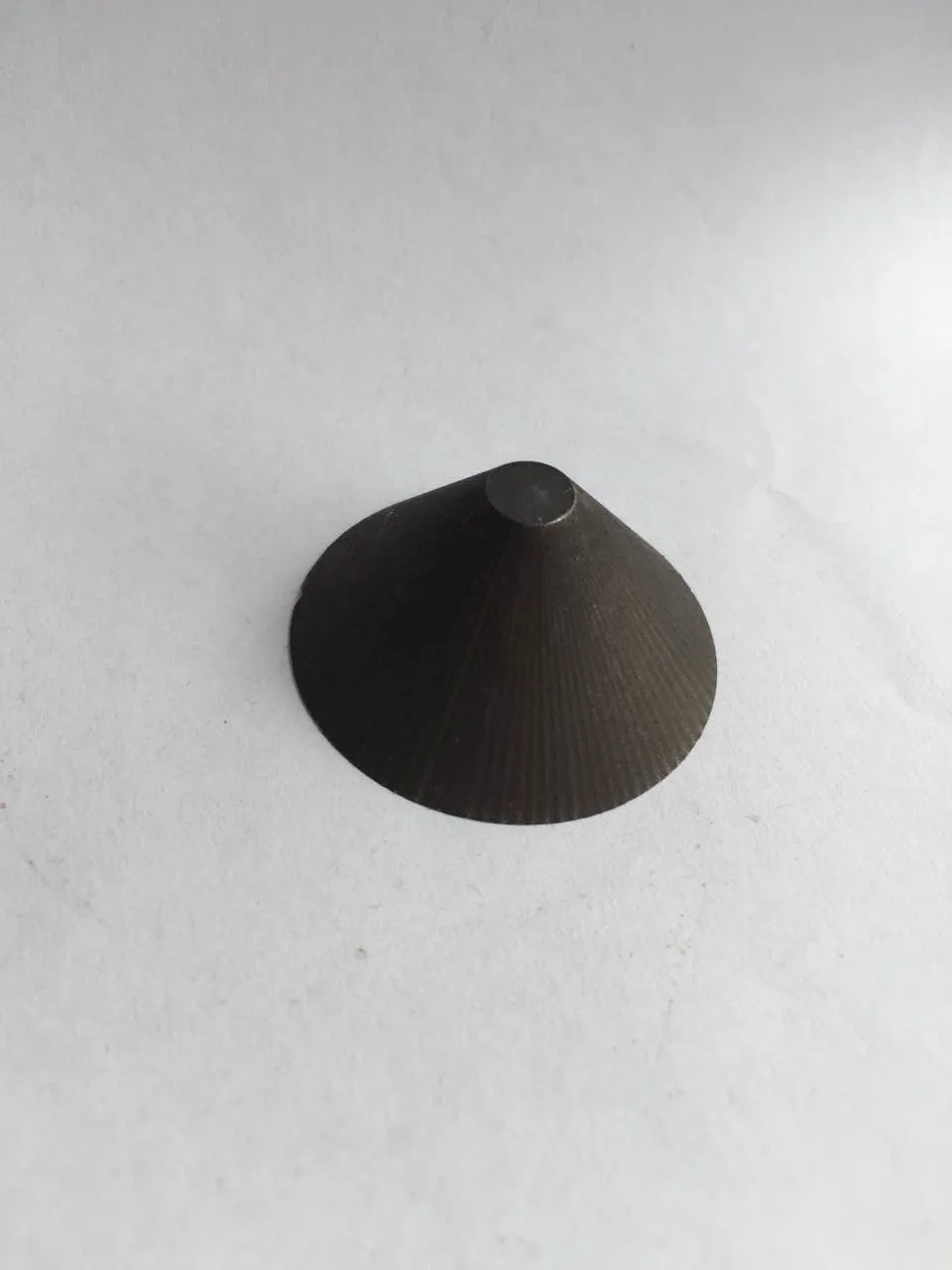

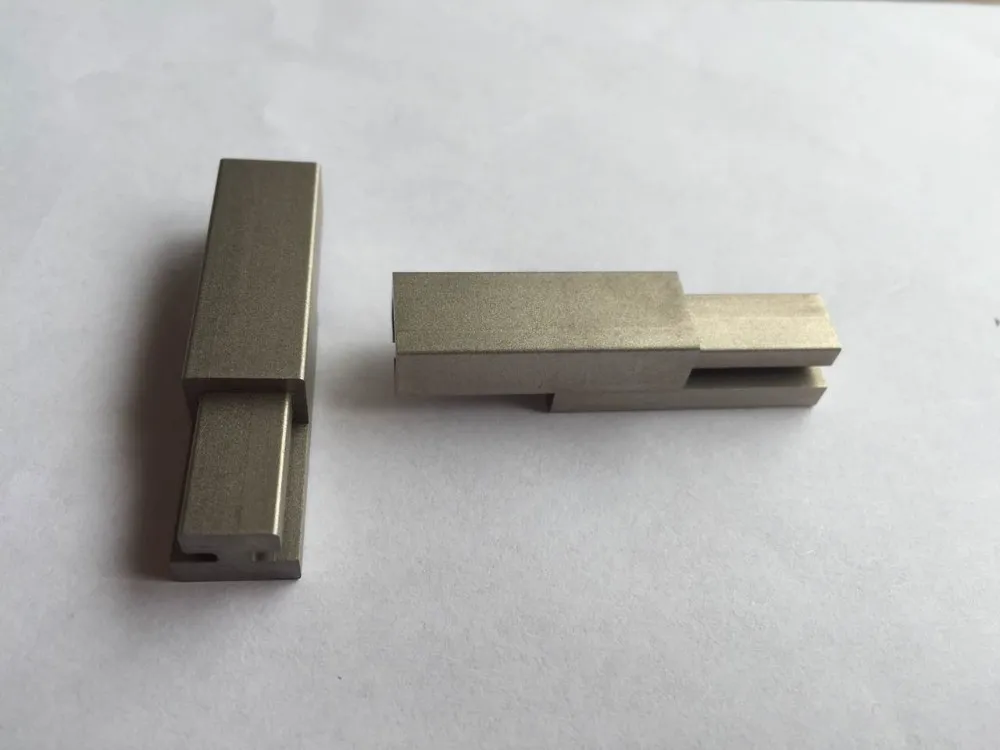

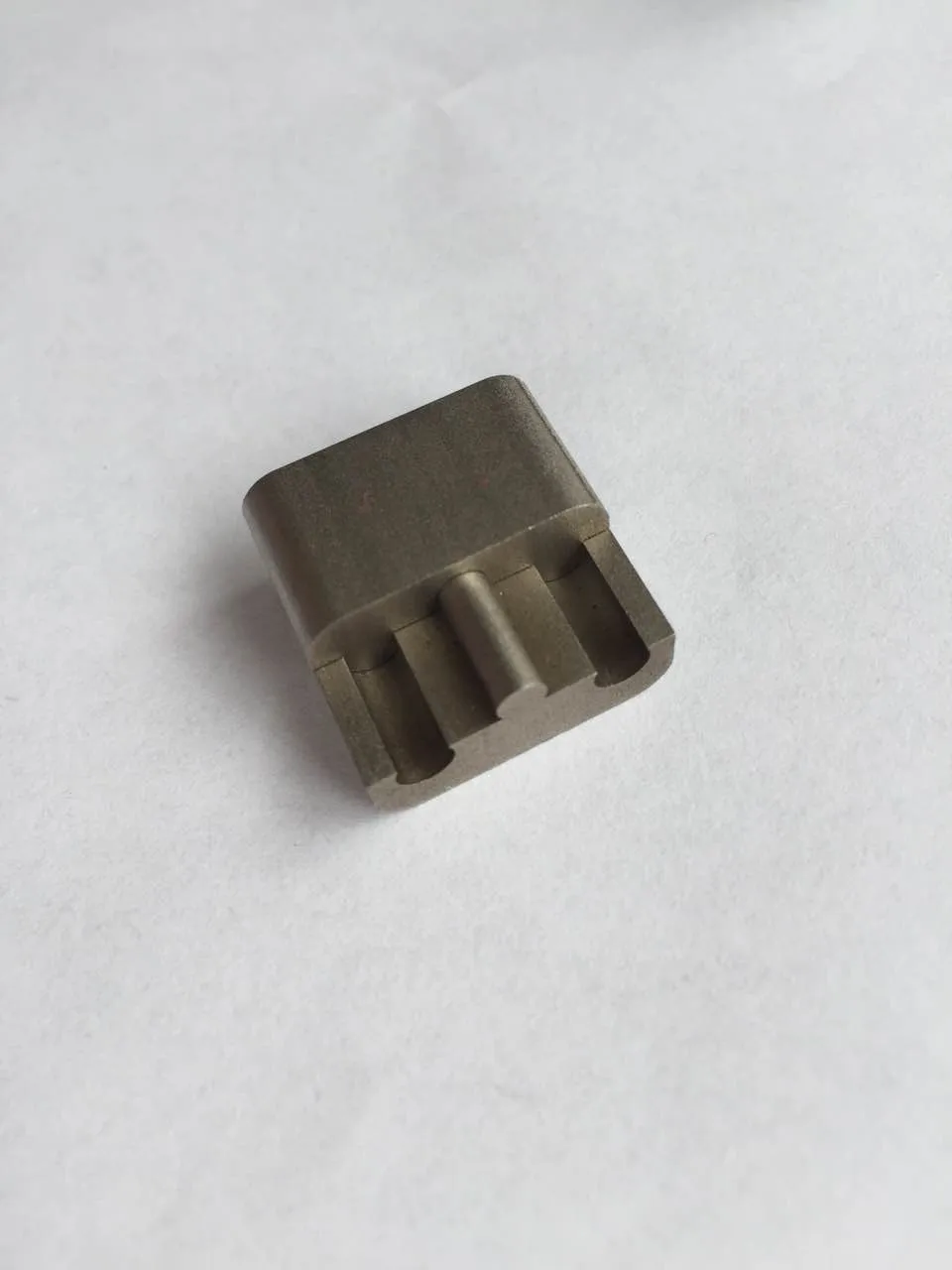

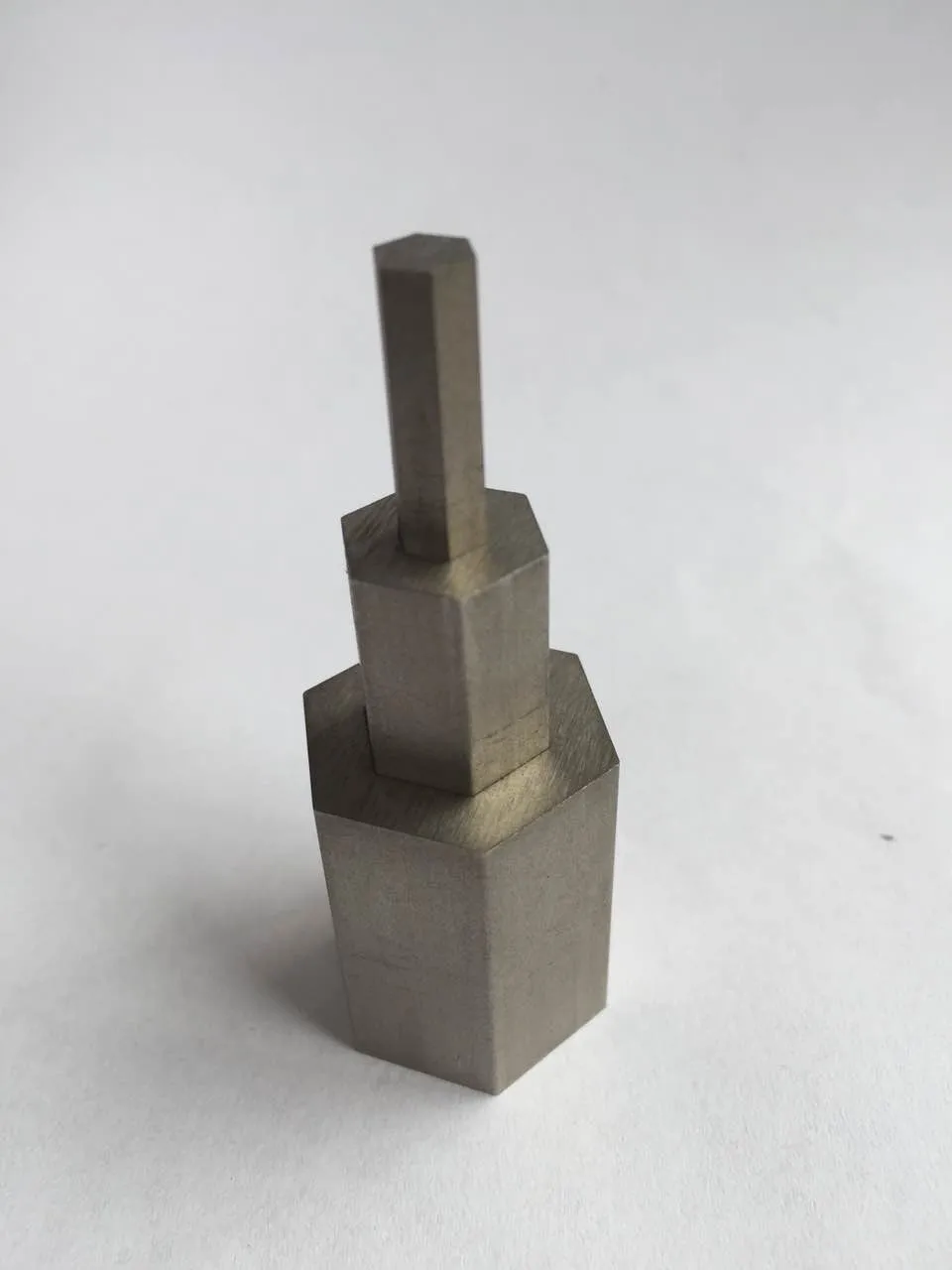

Samples
